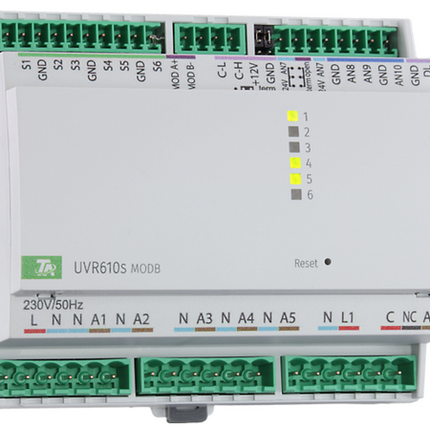

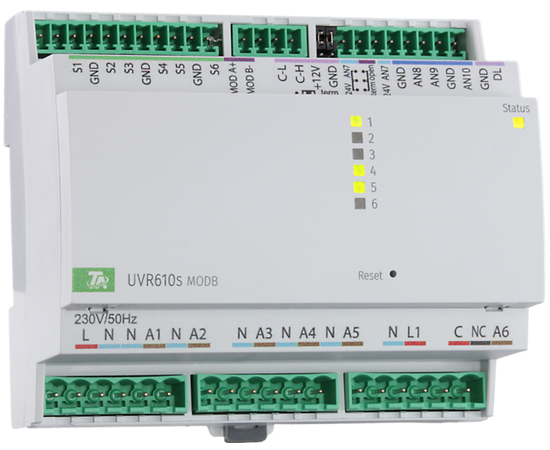

UVR610S-OD with Modbus interface

• Installation in the control cabinet (for 45 mm standard mounting plate)
• Dimensions (W x H): 106 x 91 mm, 6 TE

6 inputs of the following types:

• PT1000, KTY (1kΩ, 2kΩ), PT100, PT500, Ni1000TK5000, Ni1000, NTC, room, radiation, humidity, and rain sensor, pulses max. 10 Hz, voltage up to 3.3V, resistance 1-100kΩ, digital
• Inputs 3, 4, 5, 6: 0-10V

10 exits:

• 6 relay outputs, one of which can be used as a potential-free changeover contact
• 4 multi-function outputs selectable 0-10V, PWM, relay (e.g. with HIREL22)
  • One of these can be changed to a 24V output using a jumper.

Interfaces:

• CORA-DL
• CAN bus
• DL bus
• Modbus RTU
